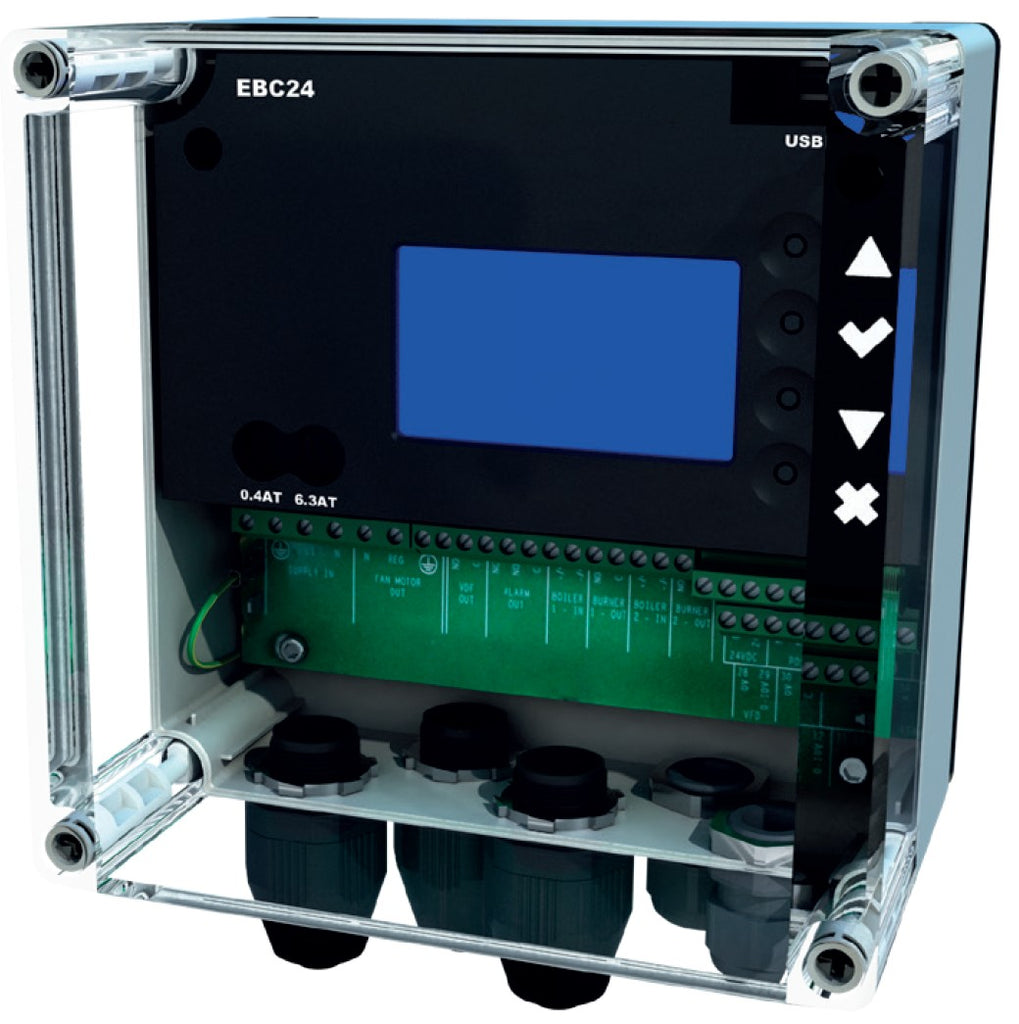

The EBC 24 is a multi-use draft or pressure controller used with fans and dampers to monitor and maintain a constant draft or pressure by varying the speed of a fan(s) or the position of an actuator. Typical uses are:
- Maintain a constant draft by modulating a power venter in a mechanical draft system serving boilers and water heaters, or
- Maintain a constant draft by modulating position of an over-draft damper serving boilers and water heaters, or
- Maintain a constant room pressure by modulating a combustion air supply fan
- Control the supply of combustion air to a mechanical room or directly to a boiler(s)
- Control and maintain room pressure
Features
- Controls exhaust fan, damper or supply fan via PID loop.
- “Plug-n-Play” monitor all terminals and registers components attached
- 0-10V signal for Edrive or actuator control
- Programmable operating range
- Includes Bi-directional XTP Pressue Transducer
- LCD
- Interlock with up to 2 heating appliances
- Integrated safety system
- Priority operation function
- Intermittent or continuous operation
- Integrated Modbus protocol
- Replacement for older EBC 12 draft controller
