Enervex Part# 305.0299.1200
(This item replaces older EBC 12X Motor Power Relay, Part# EXH0071)
The main control regulates the fan functions while the EBC 24X acts as an external motor speed control. The main control signals each EBC 24X through a 0-10 VDC signal.
The EBC 24X allows the main control to handle multiple single-phase RSV fans by increasing the system’ motor load capacity. One RSV fan is connected to the main control while additional fans are connected to one or more EBC 24X’s. The features of the main control panel apply to each EBC 24X connected. The main control will regulate the speed of all fans in use.
Controls compatible with the EBC 24X are: EBC 12, EBC 14, EBC 24, MEC 18, MEC 24, EBC 30, EBC 31 and EBC 35.

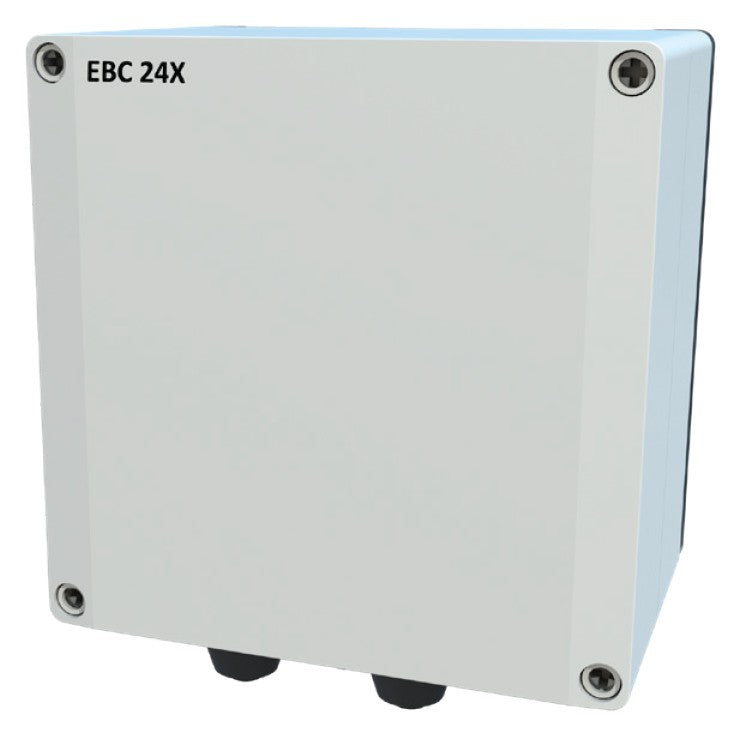

The EBC 24X housing is NEMA 3R rated polycarbonate. All terminals have a LED for fail-safe supervision and easy troubleshooting
Enervex EBC 24X Installation Manual
Specifications
| Power Supply | 1 x 120VAC |
| Amperage | 6.3A |
| Output | 10-120VAC |
| Warranty | 2 Years |
| Listing Certification | NEMA 4X ANSI/UL60947-1 & UL 60947-4-1 Switches/ Industrial Control CSA C22.2 No. 14-10, Standard for Industrial Control Equipment |
